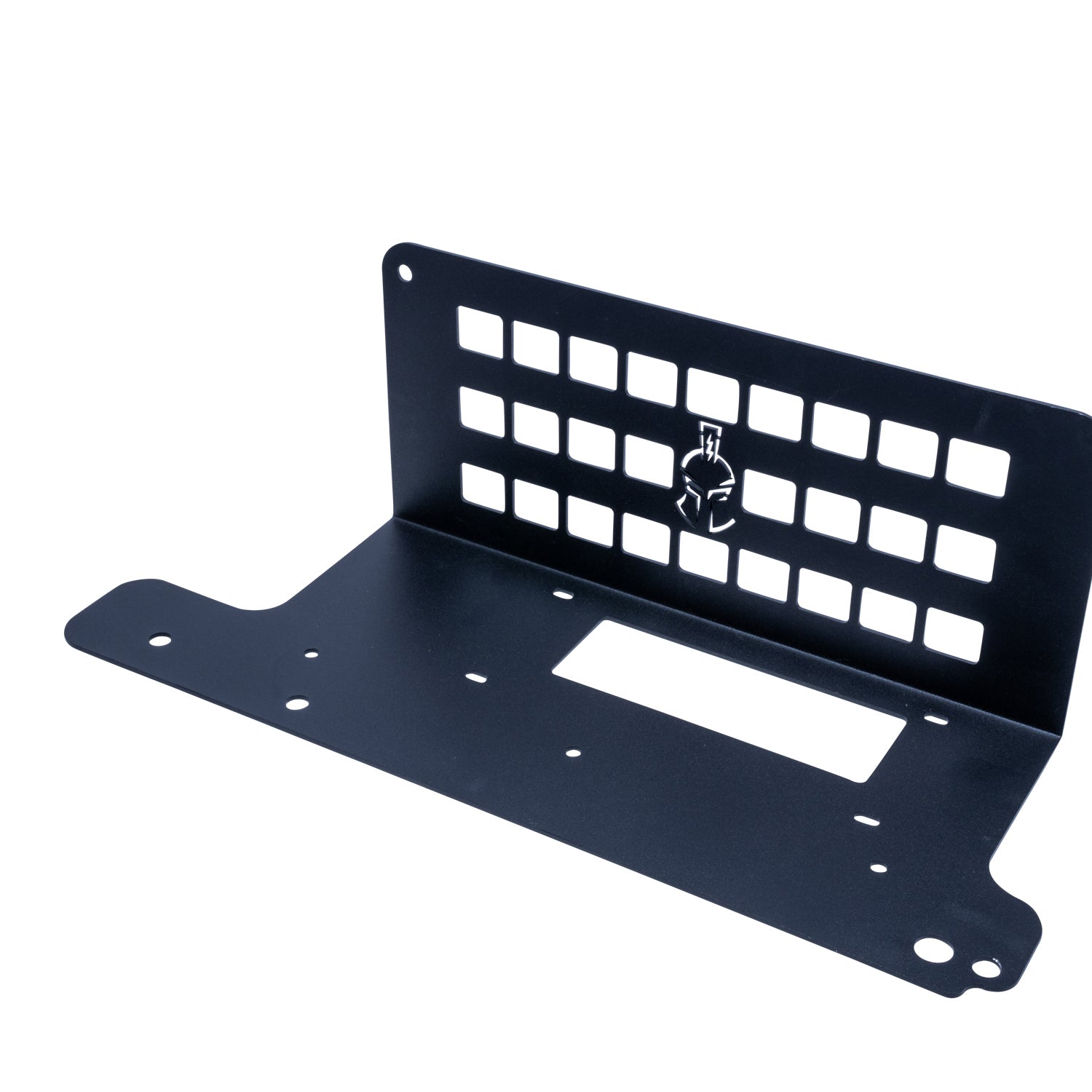

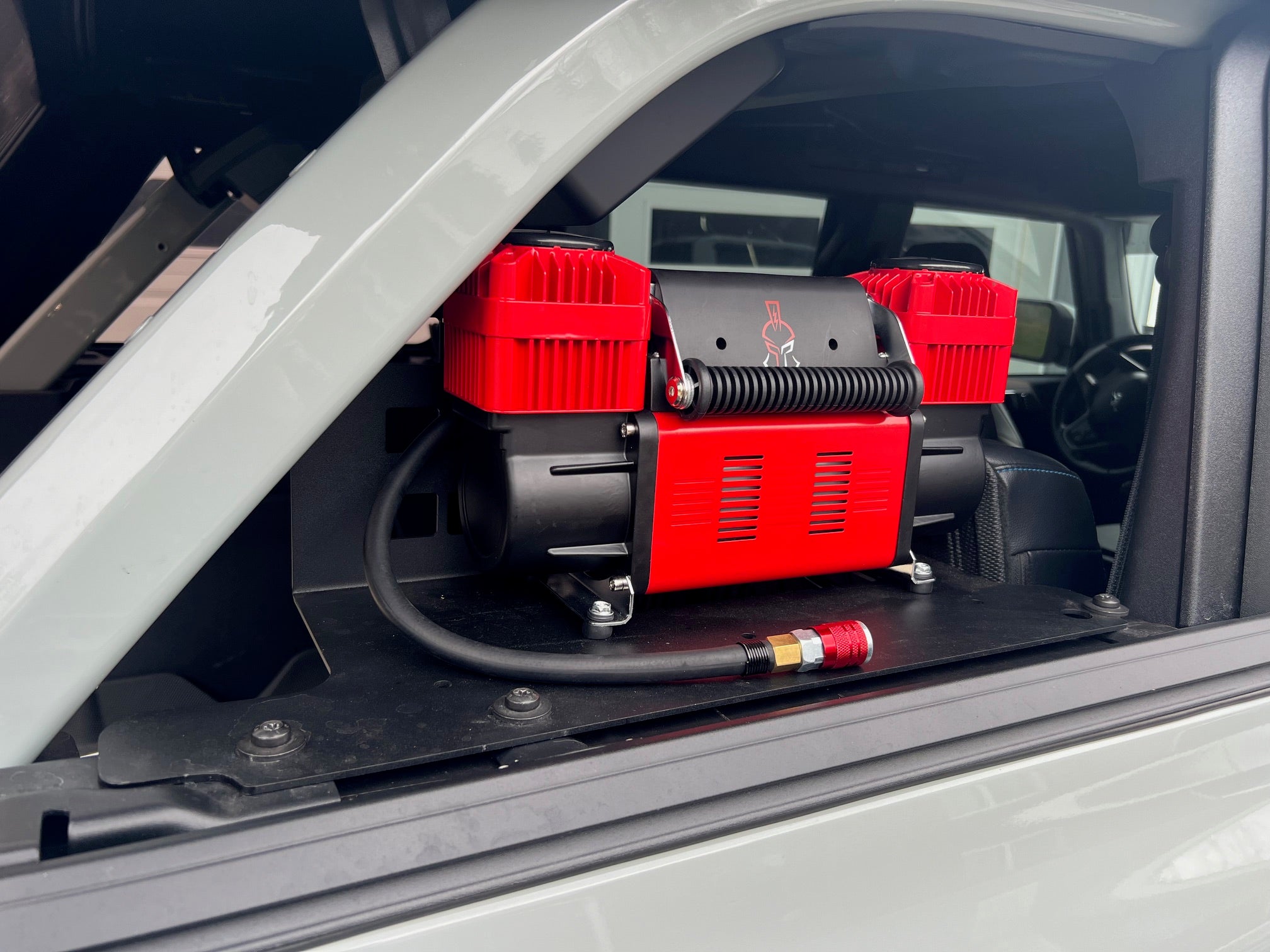

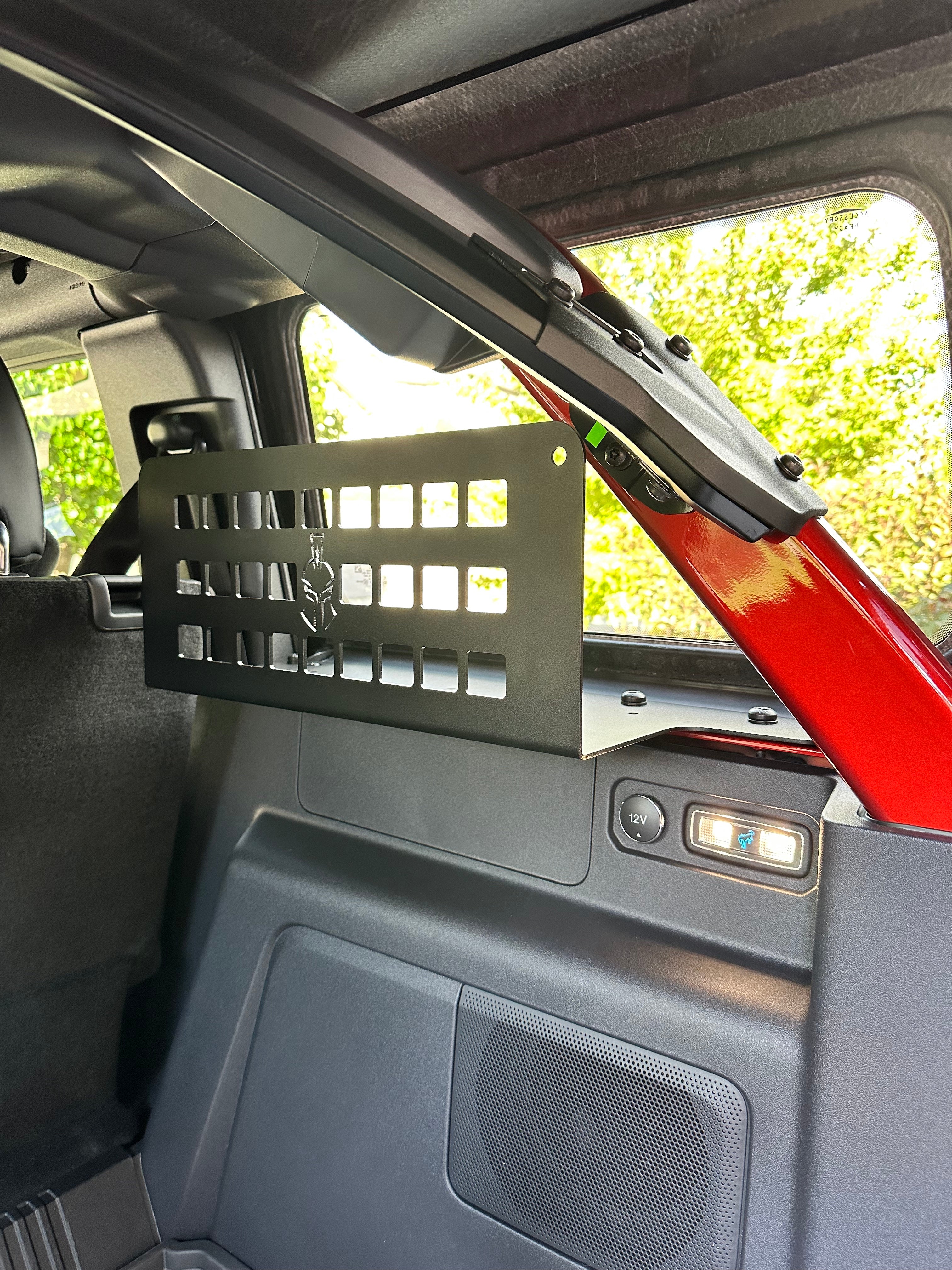

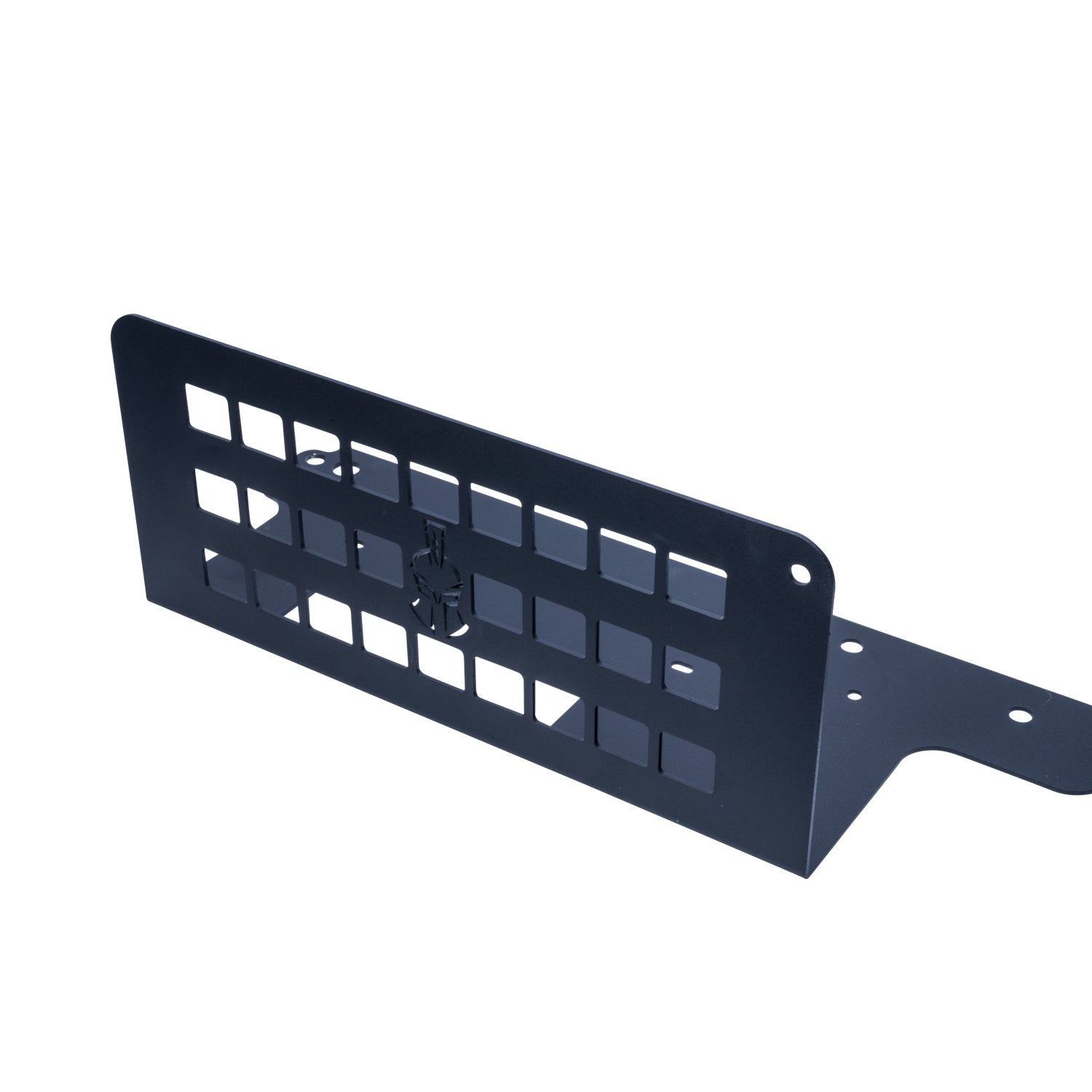

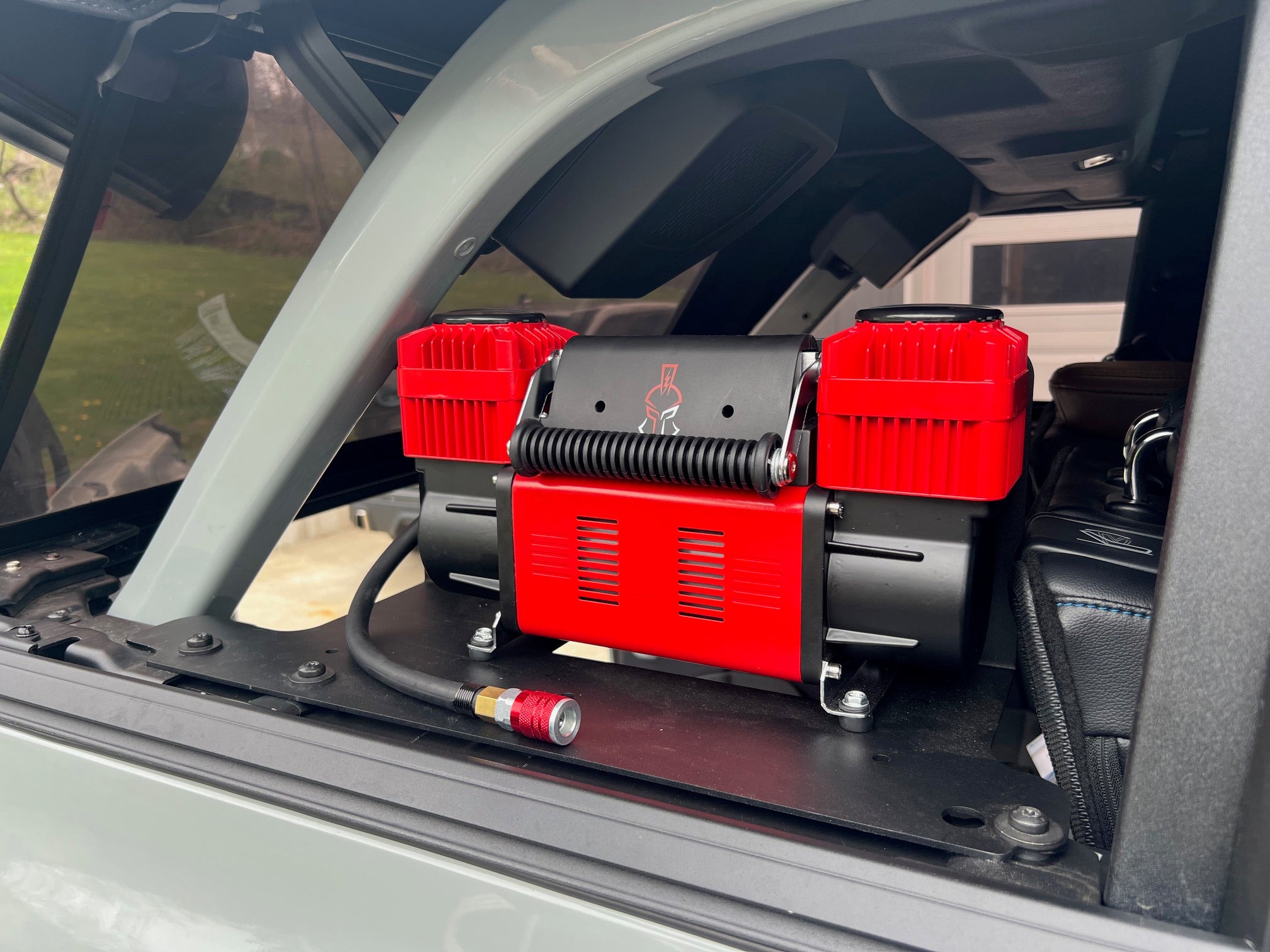

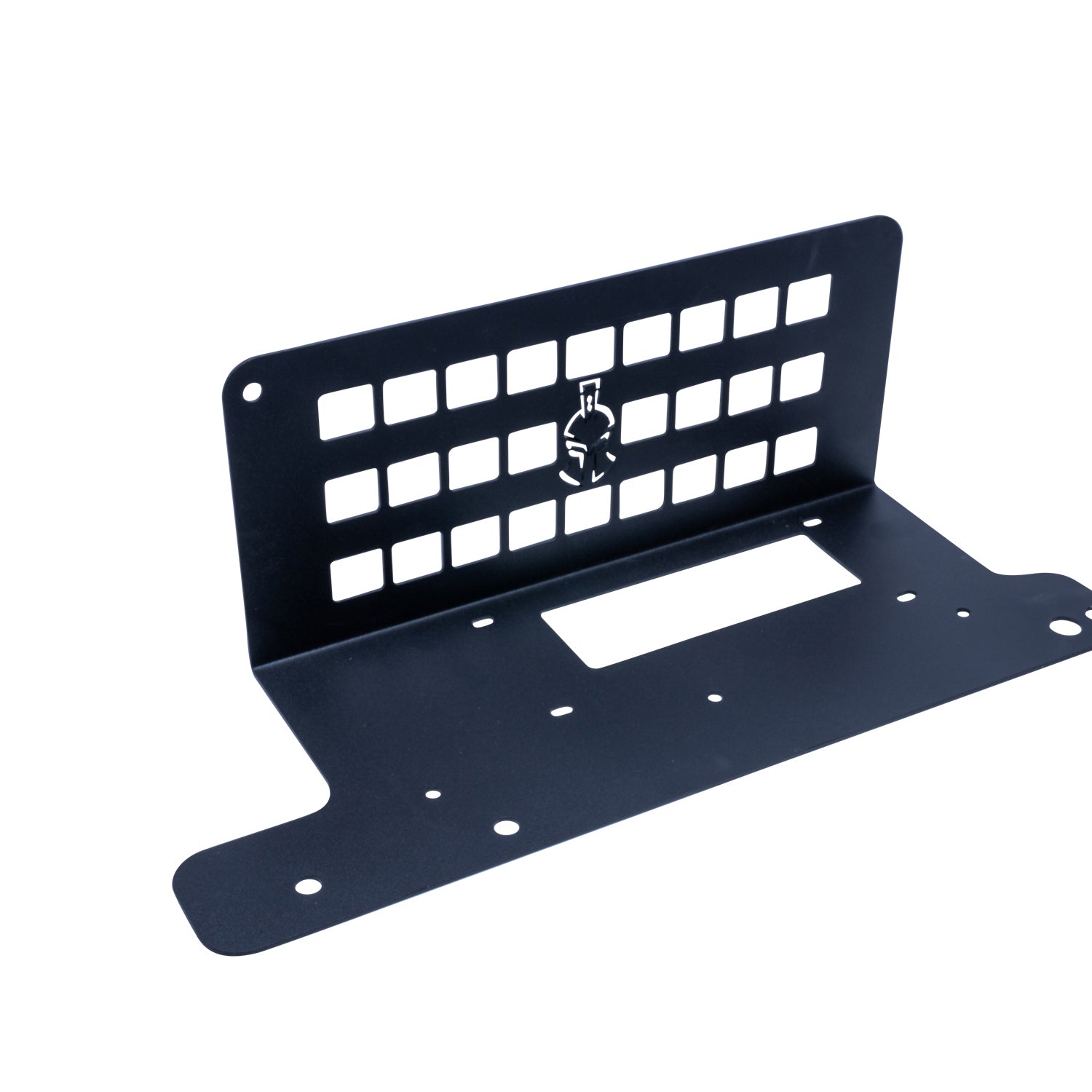

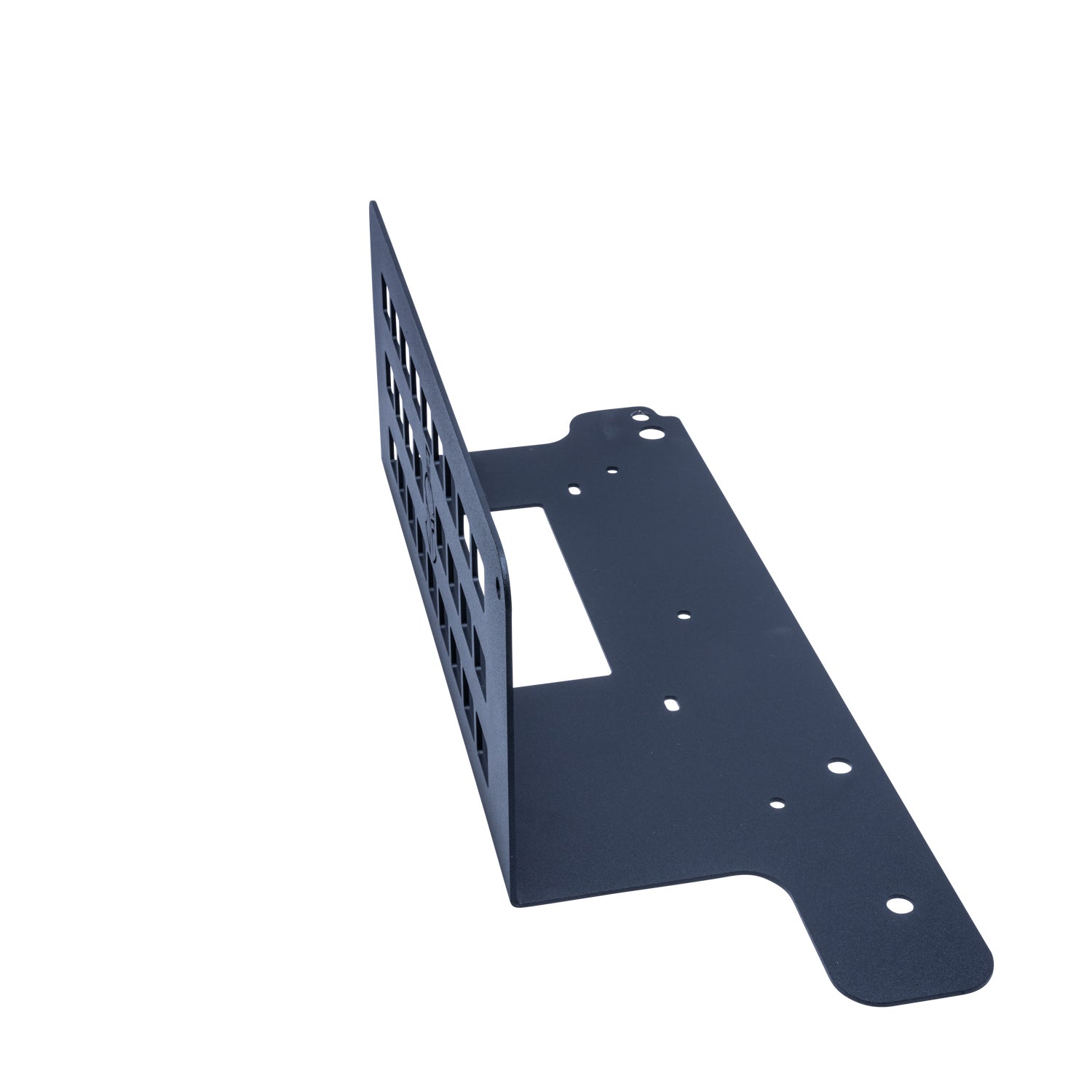

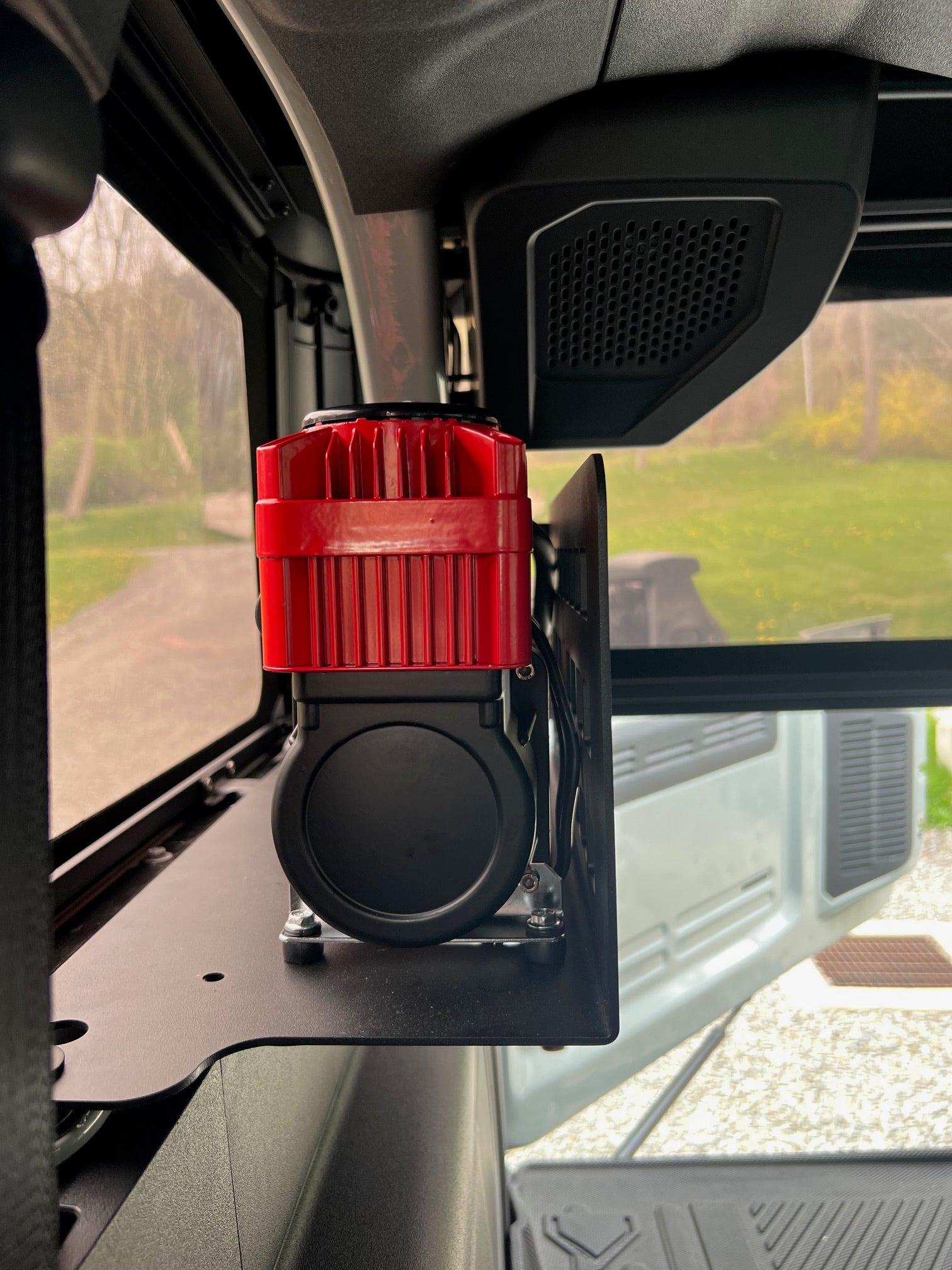

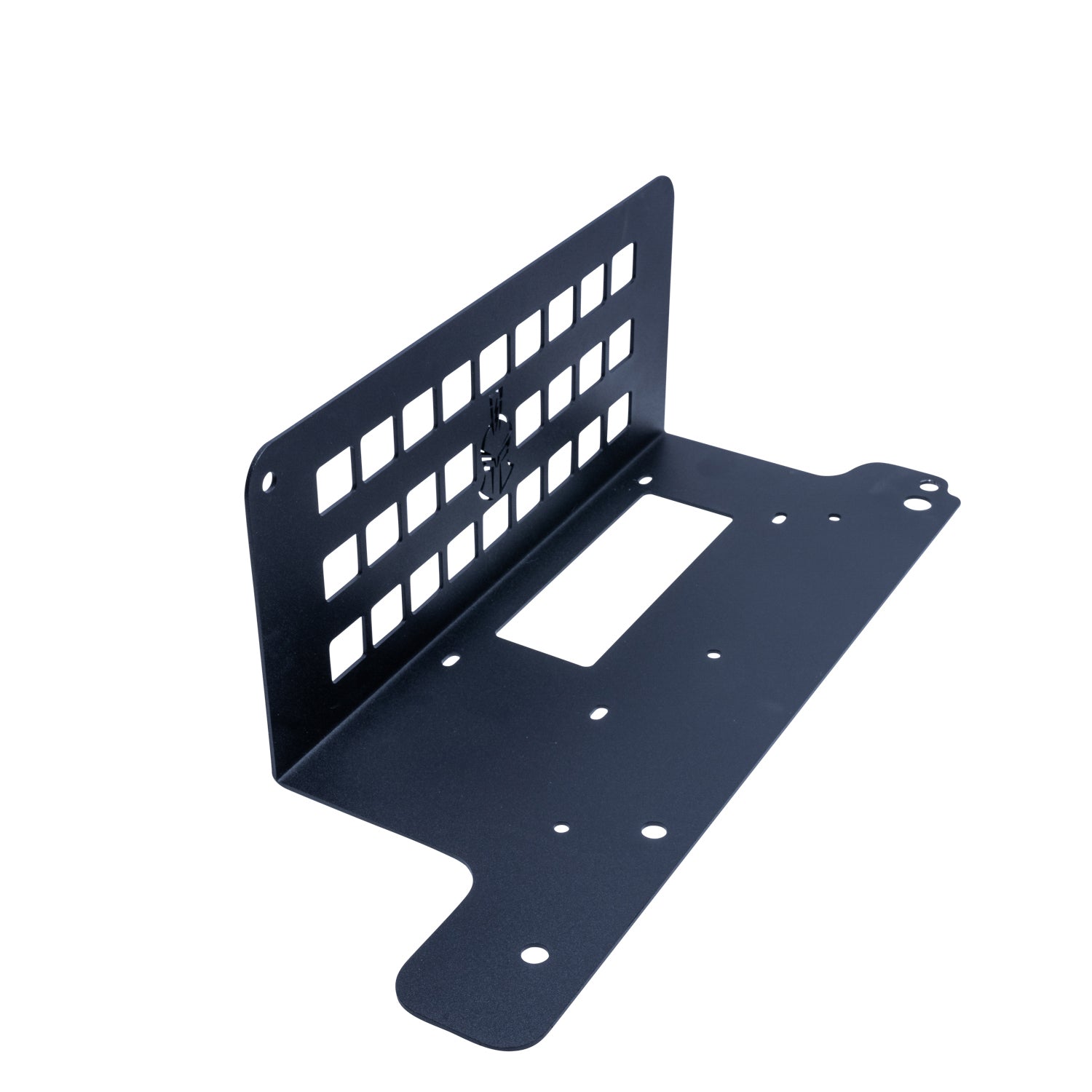

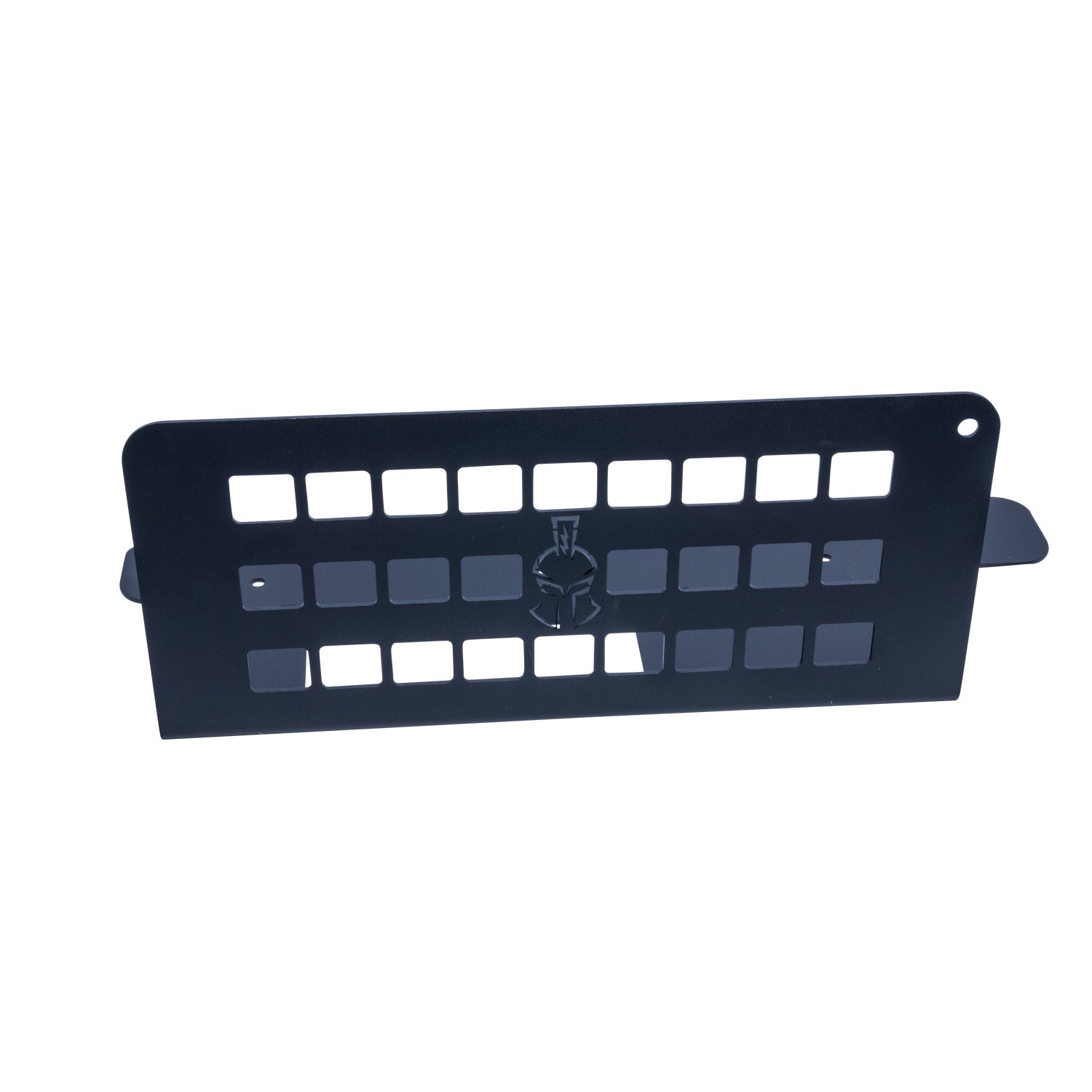

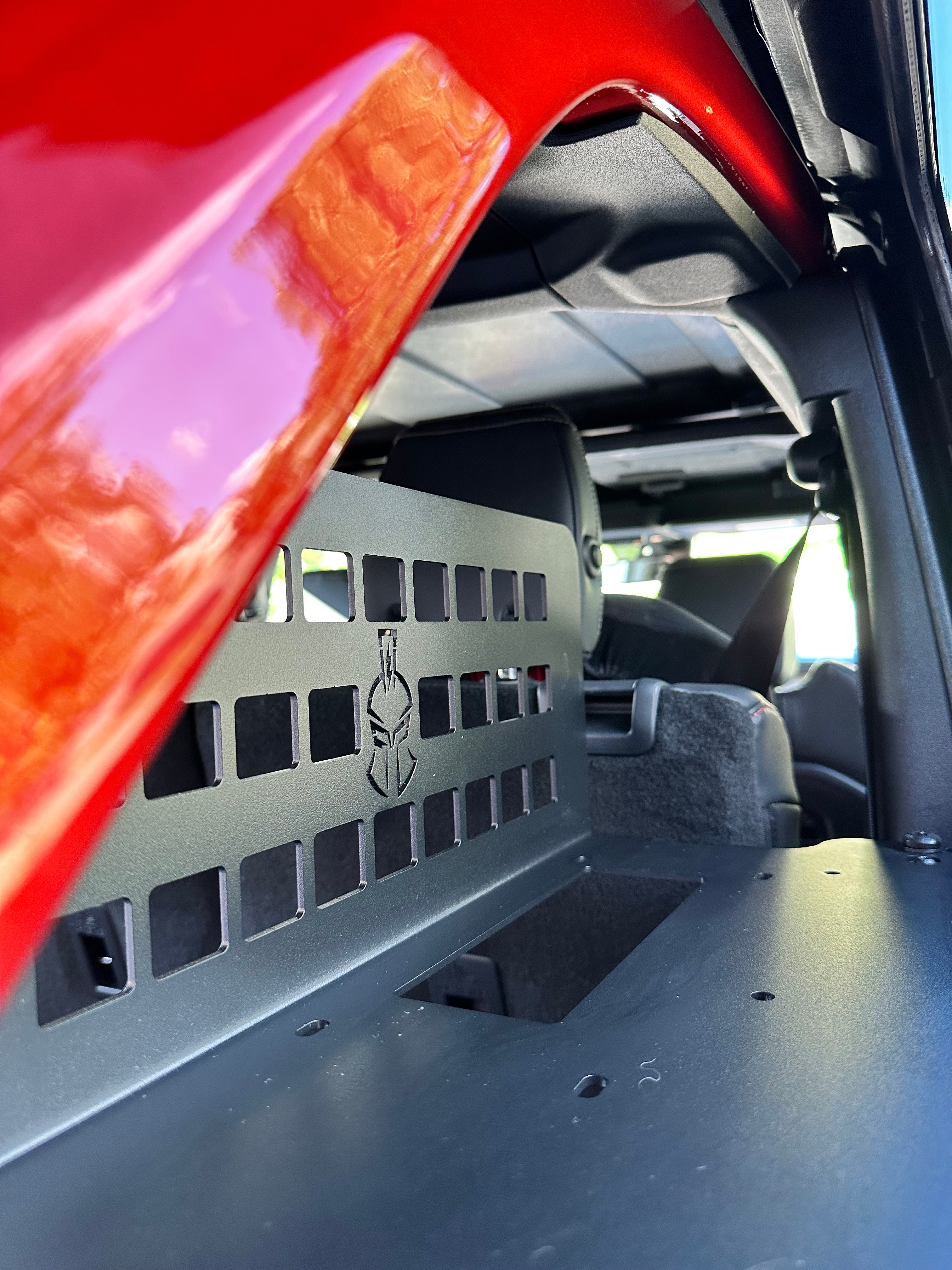

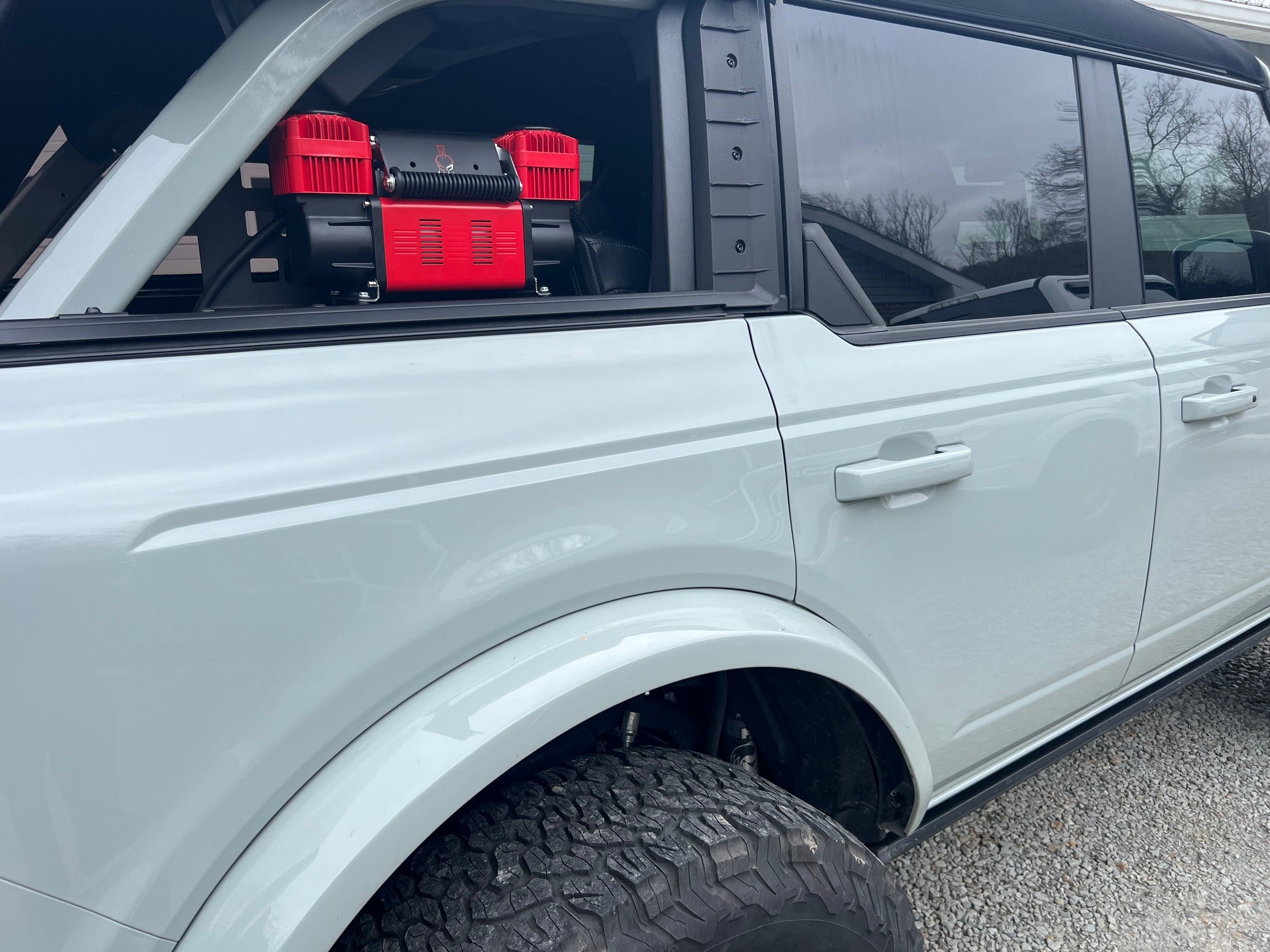

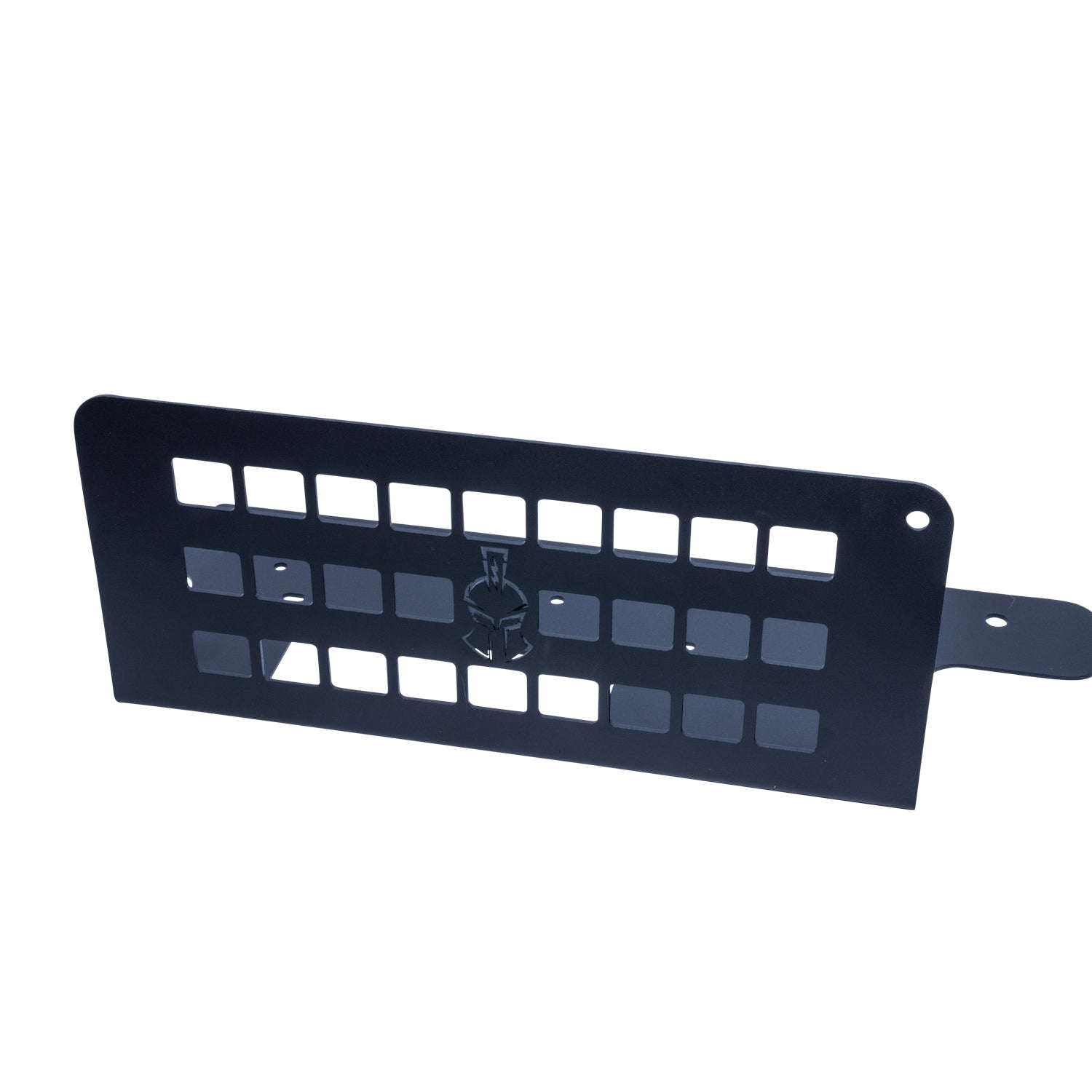

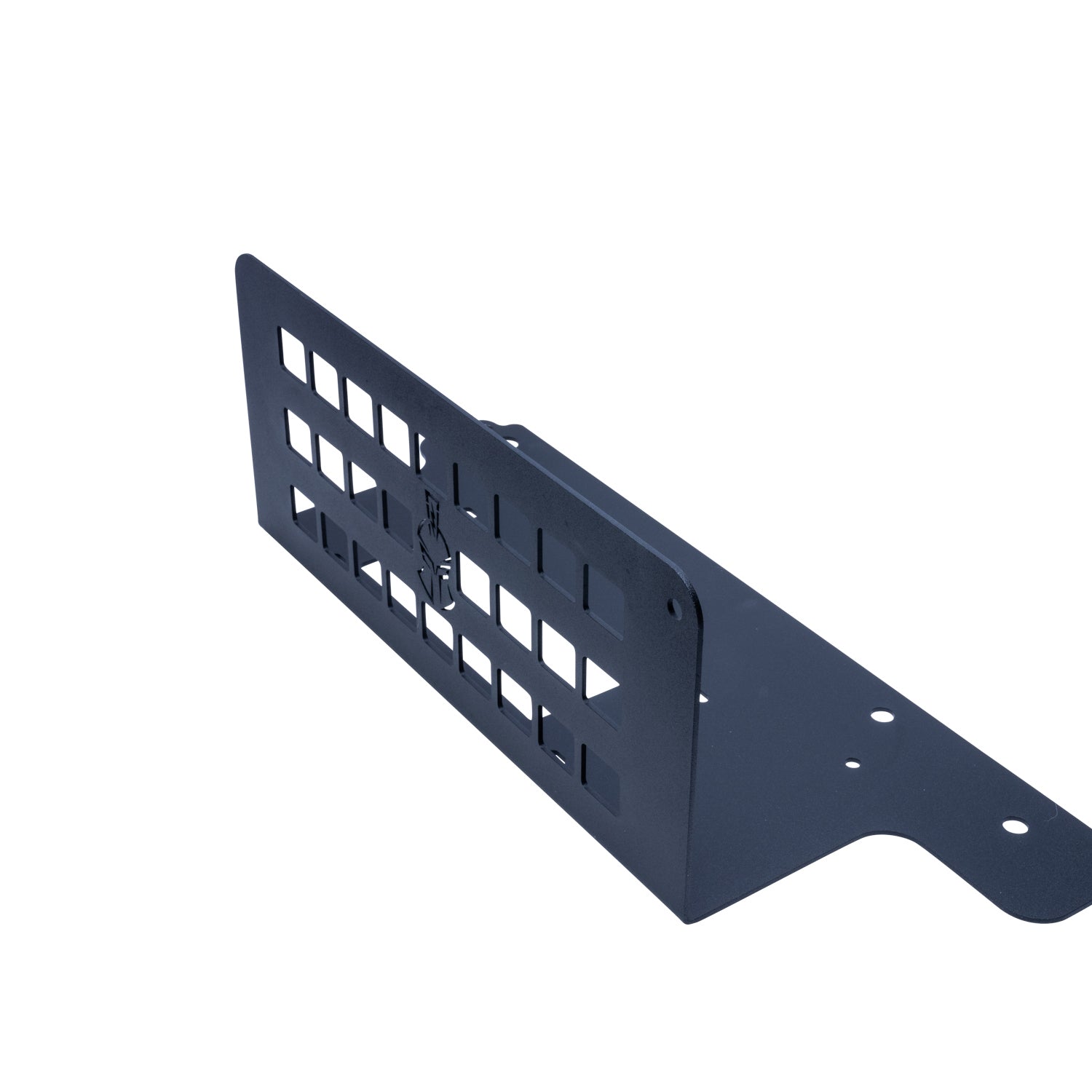

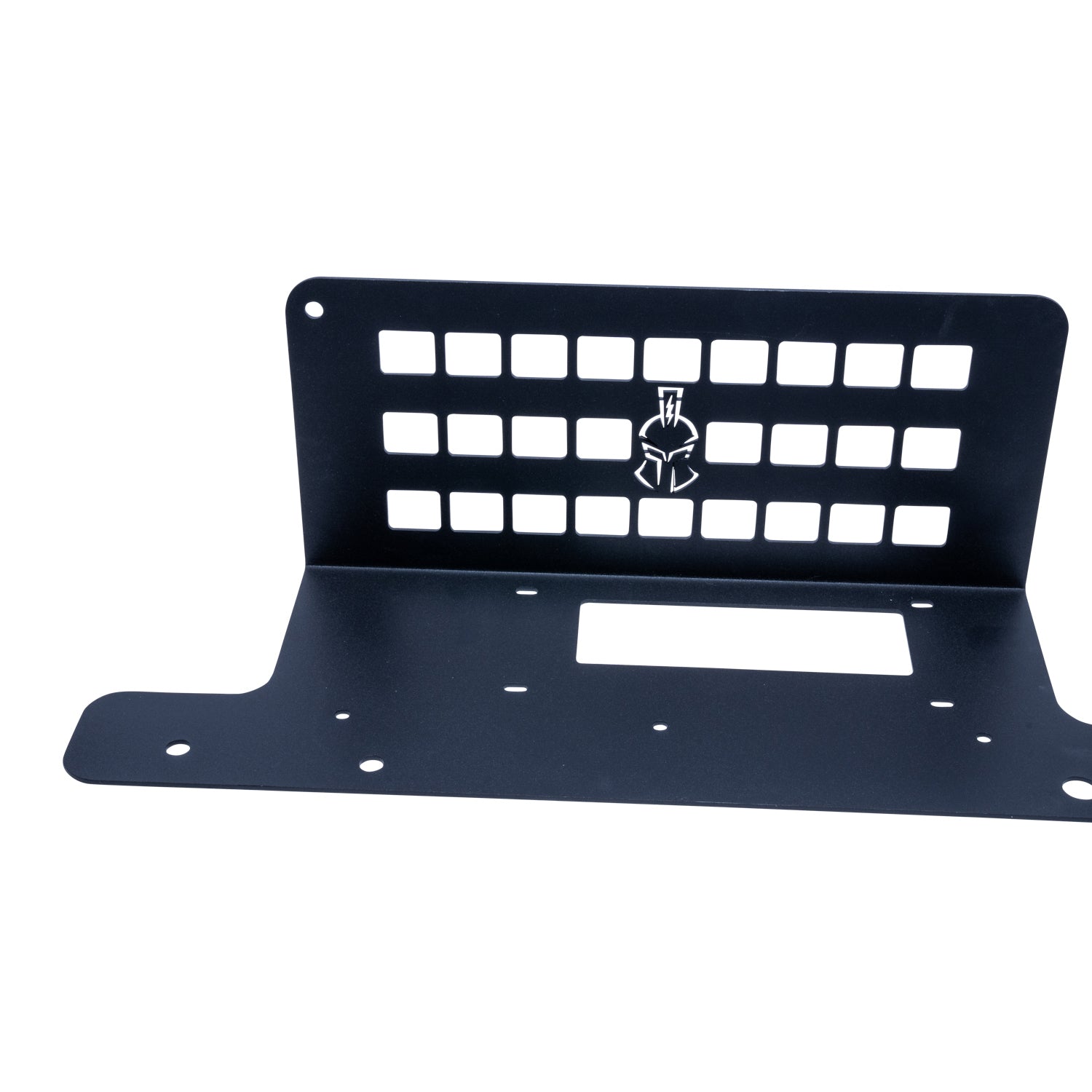

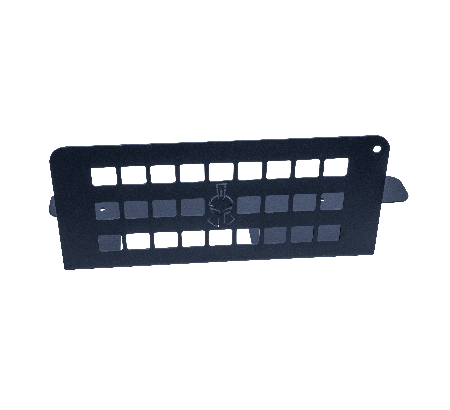

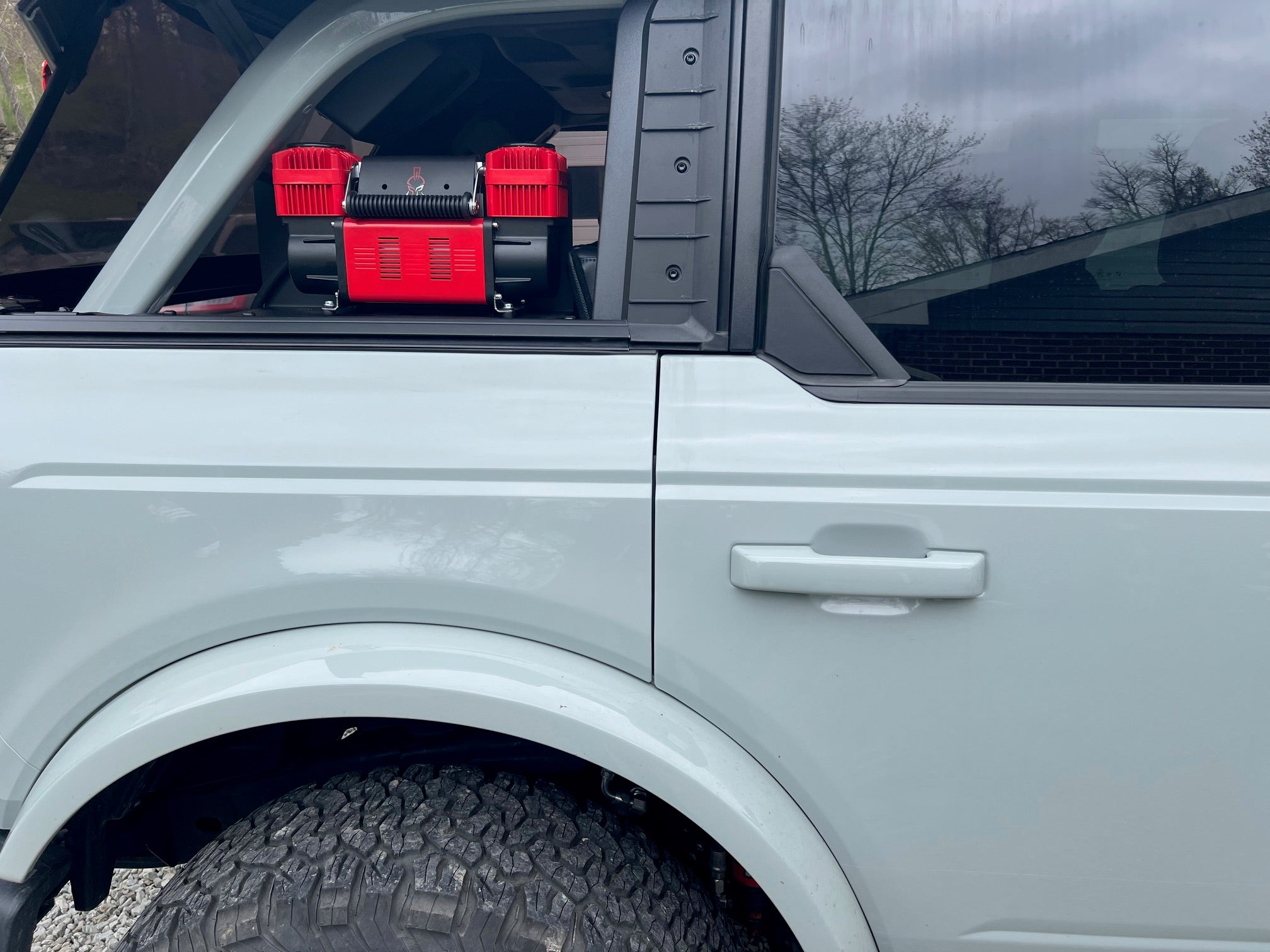

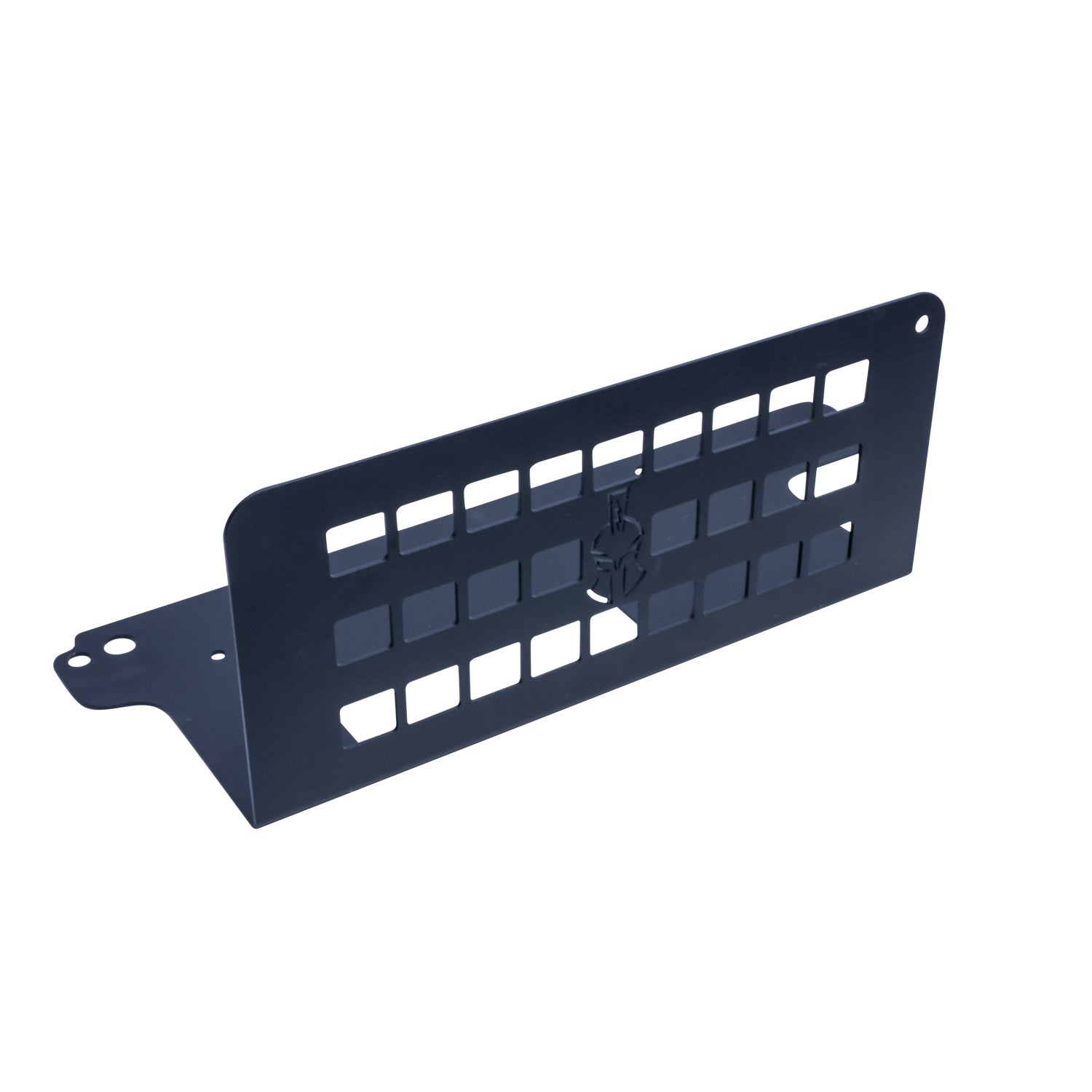

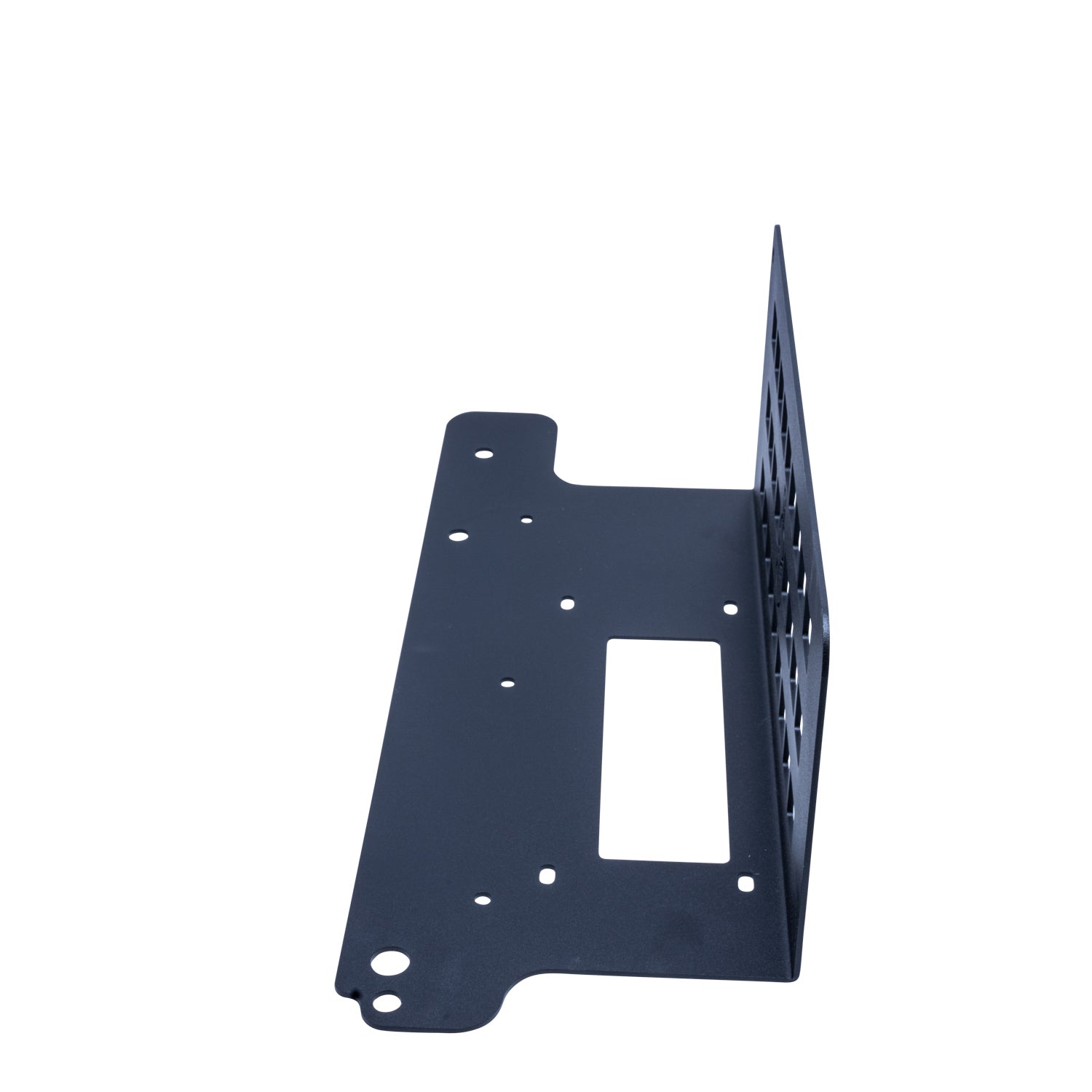

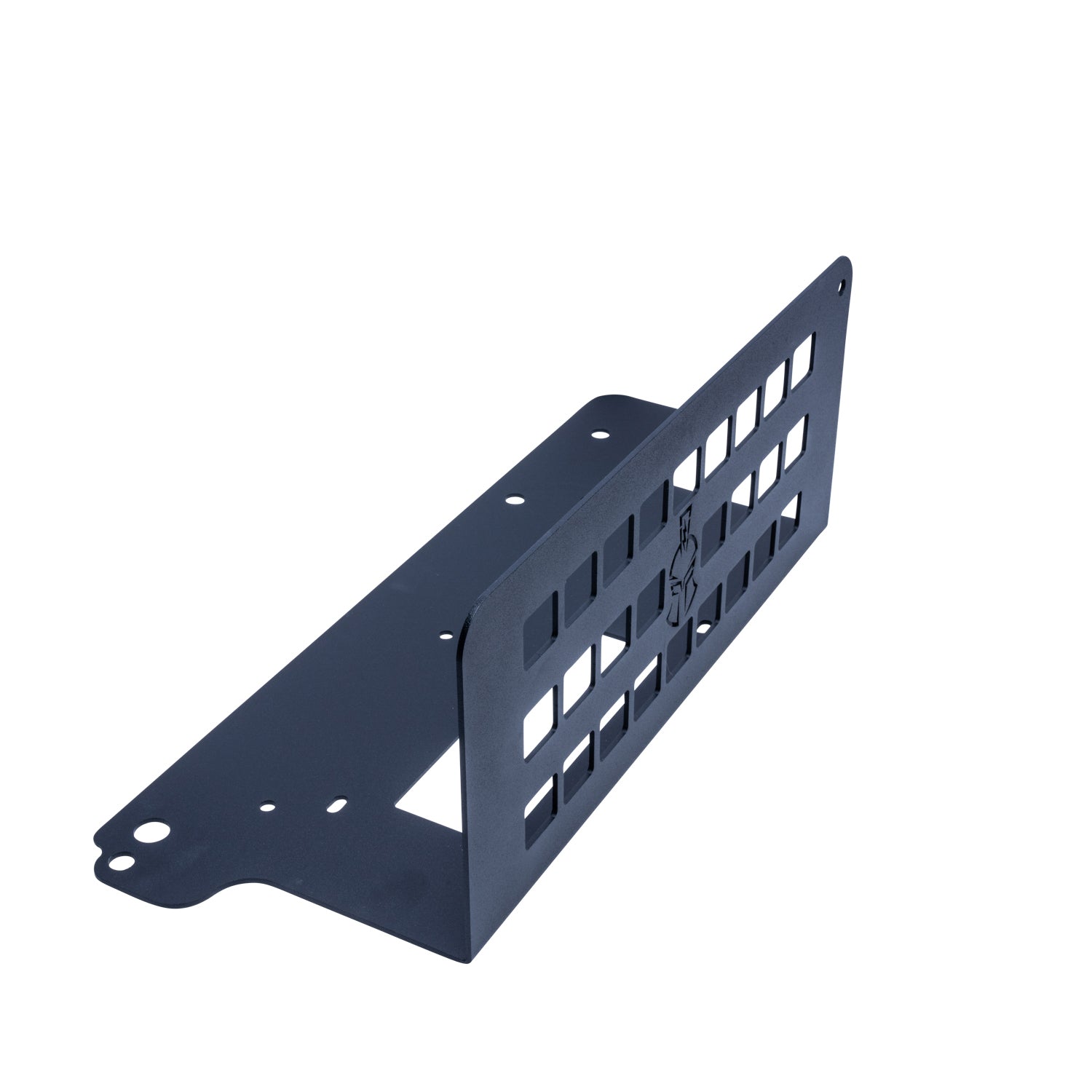

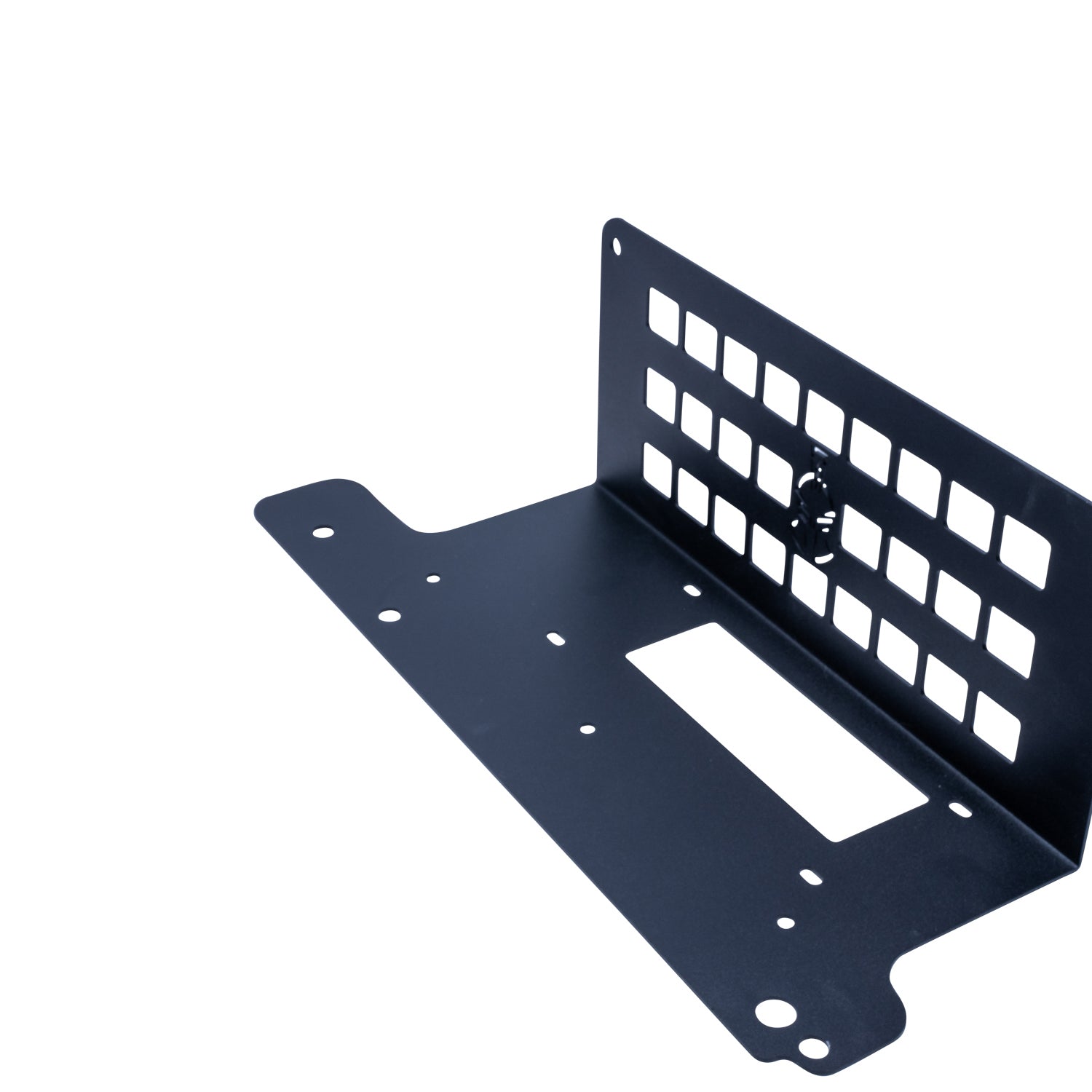

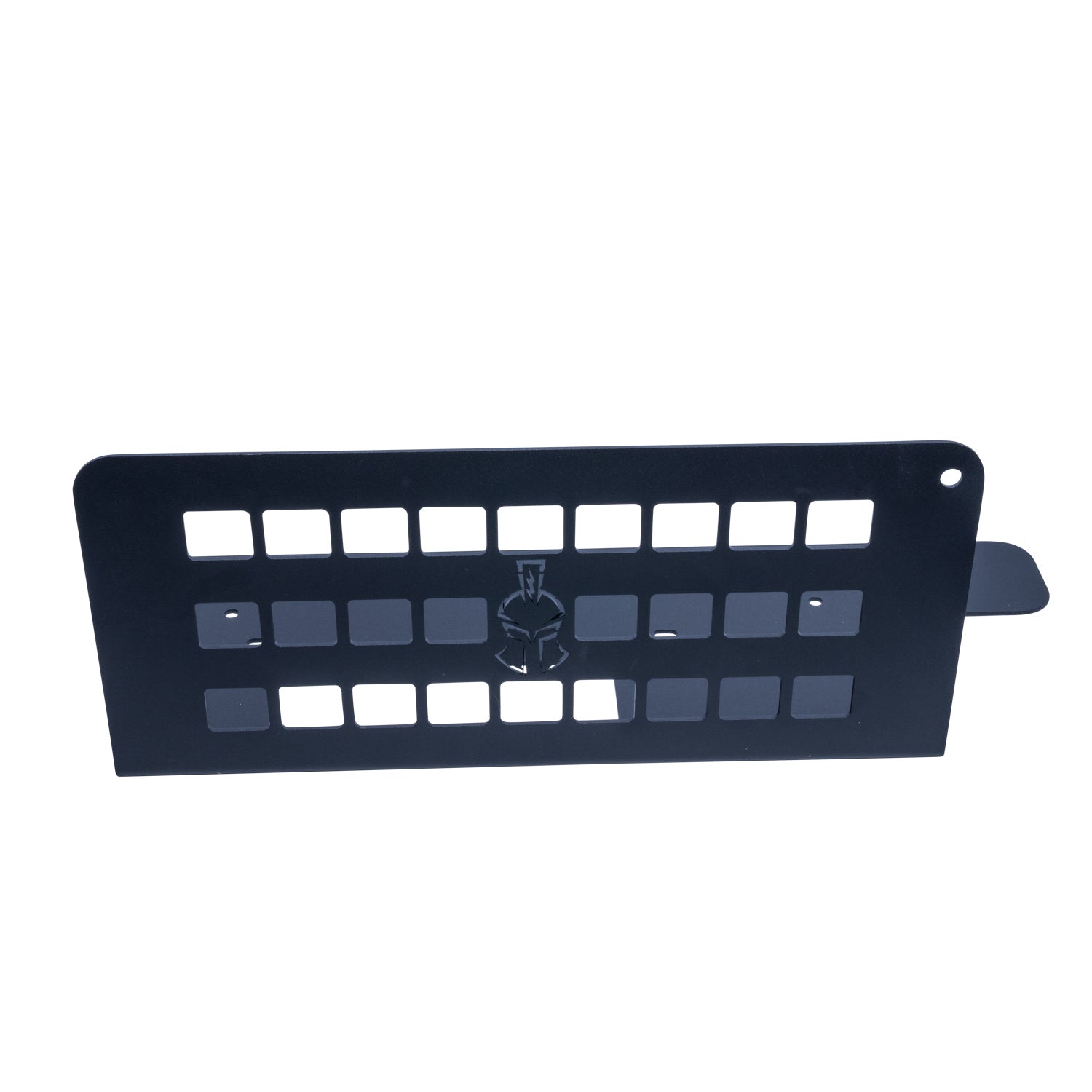

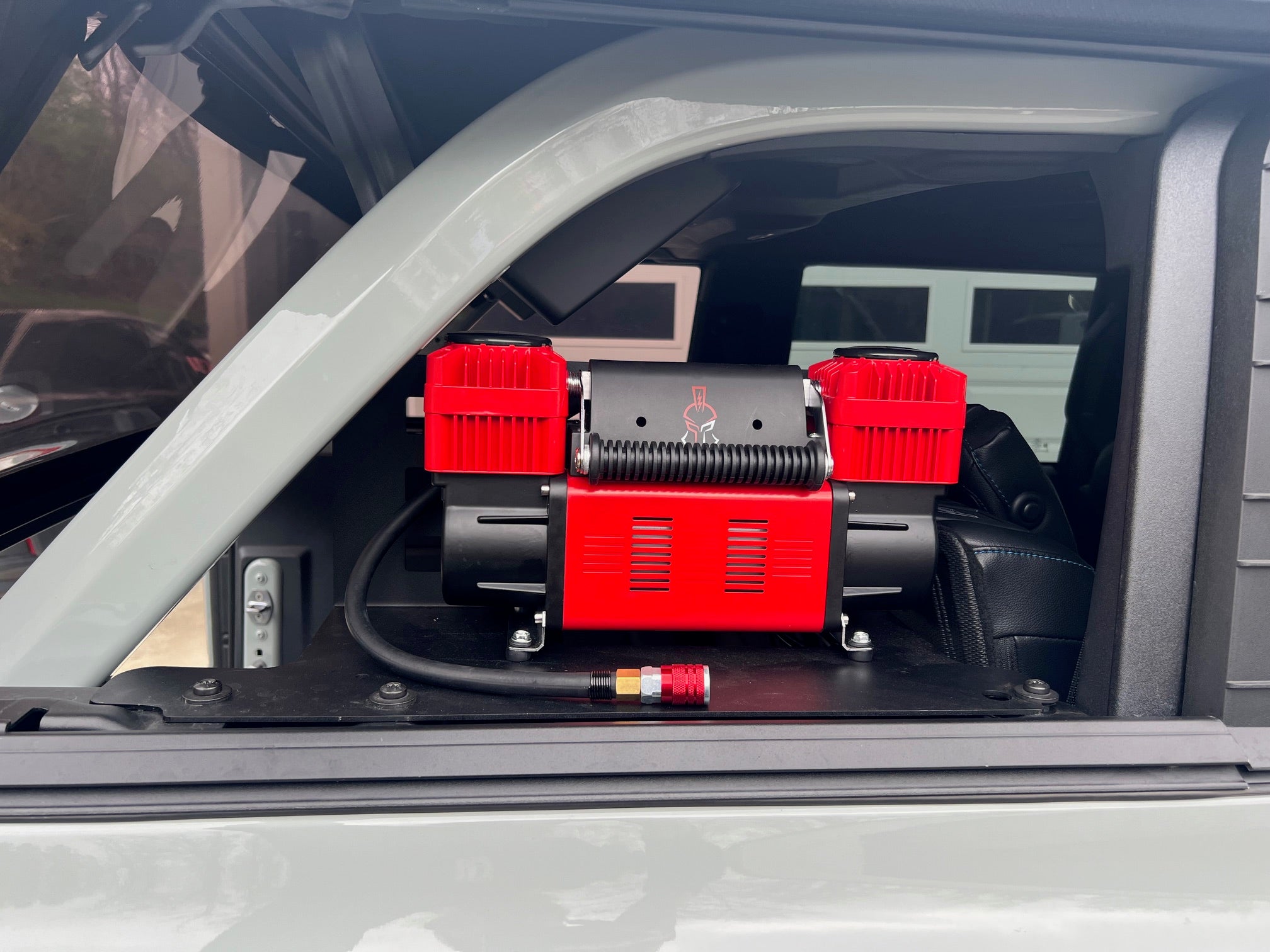

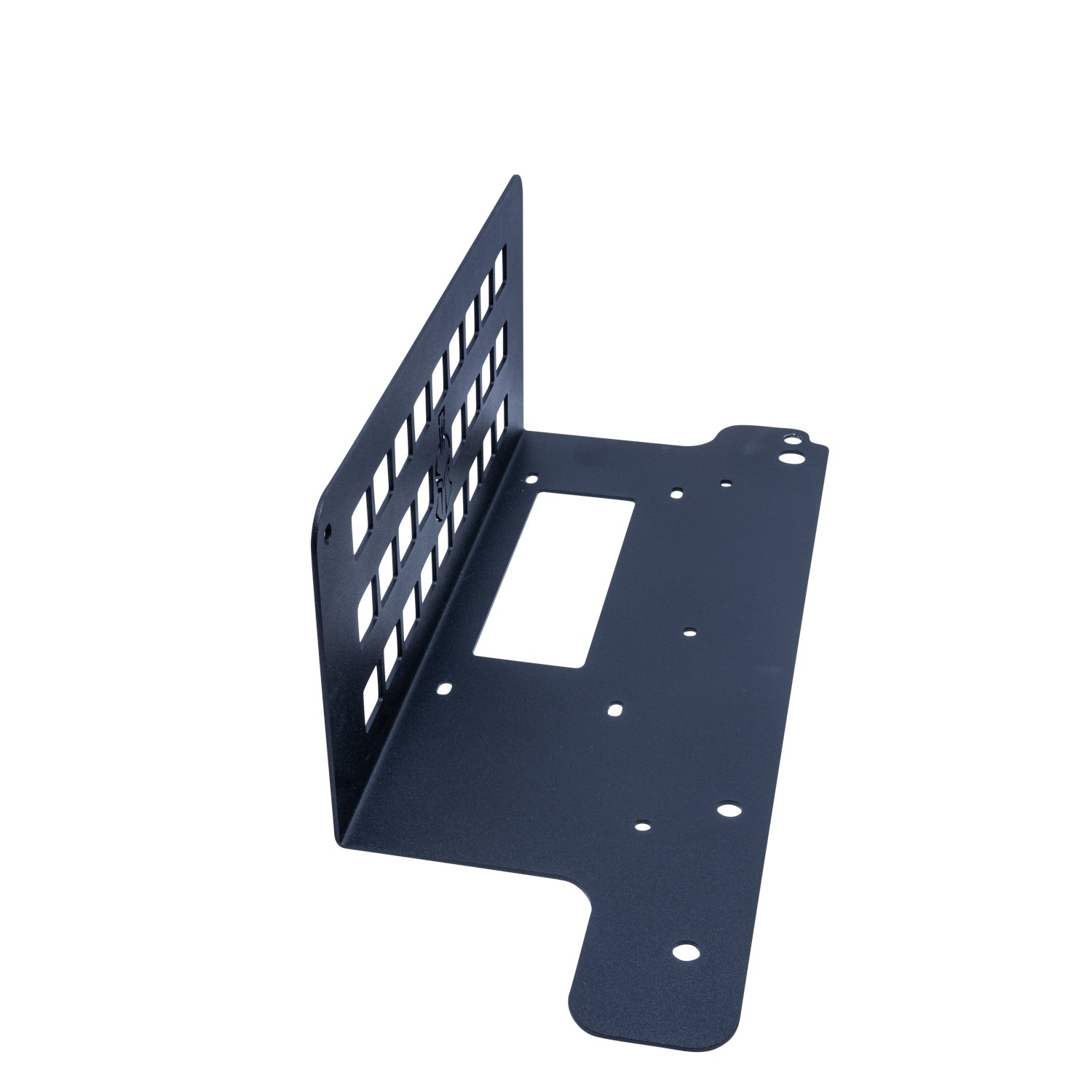

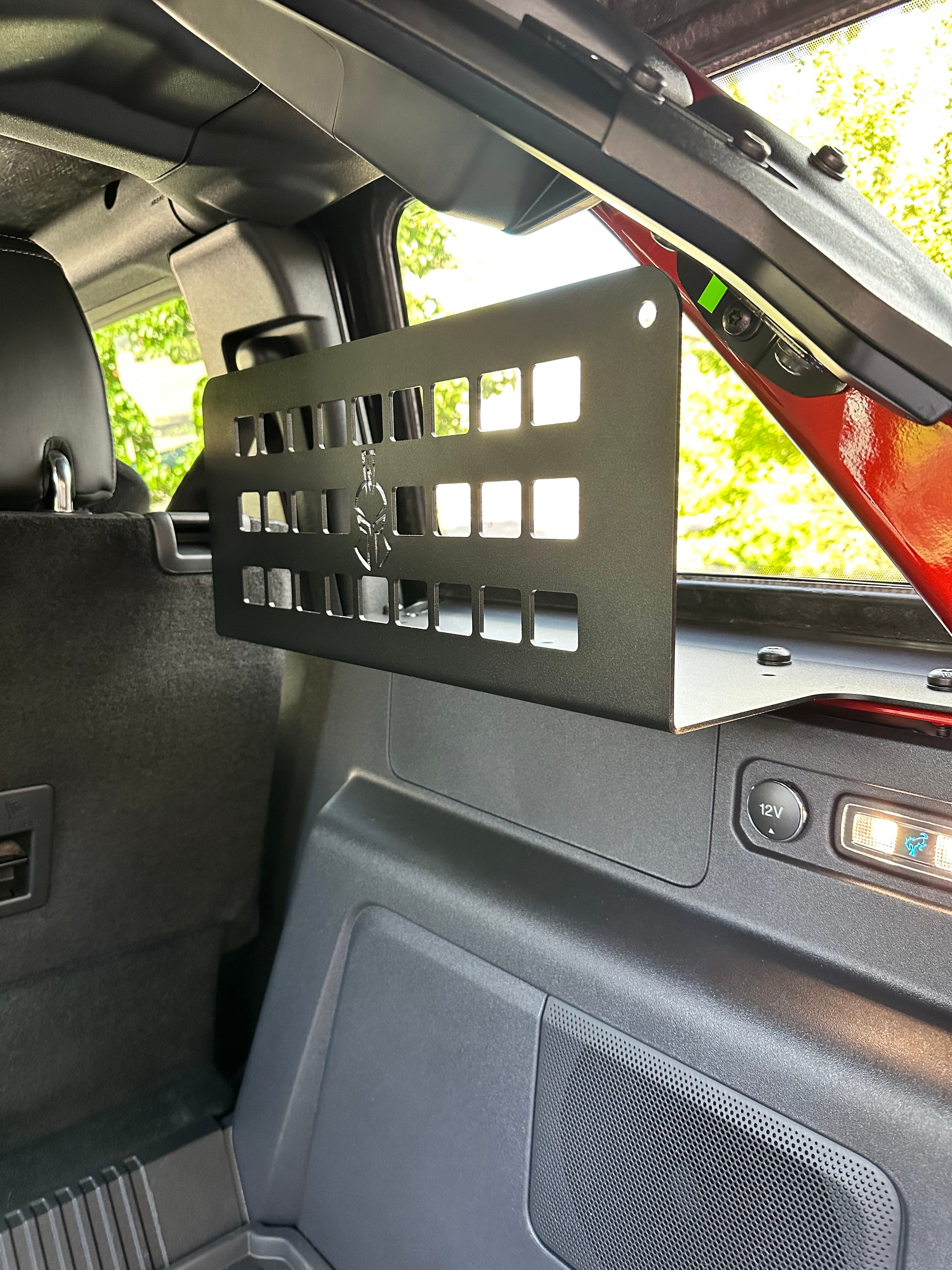

Thor's Lightning Refuge MOLLE Portable Air Compressor Mount for 6th Generation Ford Bronco 4-Door 2021-Present

We value your satisfaction with Thor's Lightning Air Systems and its products. If you aren't satisfied with your product, we want to make it right.

Our refund and returns policy lasts 90 days. If 90 days have passed since your purchase, we can’t offer you a full refund or exchange.

To be eligible for a return, your item must be returned with all components that were included in the order.

To complete your return, we require a receipt or proof of purchase.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds

If you haven’t received a refund yet, first check your bank account again.

Then contact your credit card company, it may take some time before your refund is officially posted.

Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at returns@thorslightning.com.

Sale items

Only regular priced items may be refunded. Sale items cannot be refunded.

Shipping returns

To return your product, you should mail your product to: 419 Adams Ave #1, Albert Lea, MN 56007

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you may vary.

If you are returning more expensive items, you may consider using a trackable shipping service or purchasing shipping insurance. We don’t guarantee that we will receive your returned item.

Need help?

Contact us at returns@thorslightning.com for questions related to refunds and returns.

Duration: 3 years from the date of purchase by the original Purchaser.

Limited Warranty:

1. Who gives this warranty (Warrantor): Thor’s Lightning, LLC, 419 Adams Ave #1, Albert Lea, MN 56007. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
2. What products are covered by this warranty: Thor’s Lightning Air System tire pressure inflation/deflation/equalization device and/or Thor’s Lightning Compressor Mounting Bracket and/or Thor's Lightning Air Compressors.
3. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
4. What is not covered under this warranty:
   1. The cost of labor to make repairs or replacements
   2. Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
   3. Any damage caused by using equipment beyond rated capacity and/or capability
   4. Items or service normally required to maintain the product.
   5. Items considered general wear parts such as hoses, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
   6. Any component damaged in shipment or any failure caused by installing or operating equipment under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
   7. Any component failure caused by rain, excessive humidity, corrosive environments or other contaminants
   8. Worn components due to improper maintenance or corrosive environments
   9. Cosmetic defects that do not interfere with product functionality
   10. Damage due to incorrect voltage or improper wiring
   11. Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of a Thor’s Lightning product
5. Responsibilities of Warrantor under this warranty: Repair or replace with either new or reconditioned unit at Warrantor’s option, component and/or unit which is defective, has malfunctioned and/or failed to conform within duration of the warranty period.
6. Responsibilities of Purchaser under this warranty:
   1. Provide dated proof of purchase and maintenance records
   2. Freight costs must be borne by the Purchaser.
   3. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
7. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

Limitation of Liability: Thor’s Lightning shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of Thor’s Lightning has made any attempt to service or modify the tool prior to its return to Thor’s Lightning under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages Thor’s Lightning products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. Thor’s Lightning may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on Thor’s Lightning website. Such revised terms shall be effective thirty days from the date of such written notice or posting.

Scroll down for helpful videos and written instructions for our products. If you need additional help please e-mail us at sales@thorslightning.com or call us at 720-797-9784!

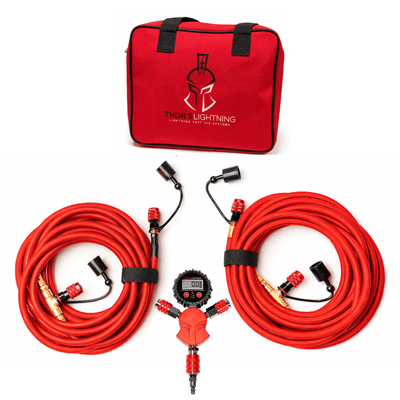

Deflation:

• Step 1: Un-pack hoses. There are two long hose sections, one for each side of the vehicle. There is a manifold equipped with two quick-disconnect couplers for the two long hose sections. Orient the hoses so the manifold is accessible for your air source.
• Step 2: Connect the hose to the manifold via the quick-disconnect couplers (if needed). Make sure the air-valve (black handle) is parallel to the ground (this closes the valve).
• Step 3: Connect long hose sections to the vehicle tire valve-stems using the quick disconnect tire chucks. Make sure there’s no kinks in the hose line.
• Step 4: After connecting the long hose sections to all tires that need to be deflated, open the air-valve by turning the black handle to perpendicular to the ground. Close the valve and check the digital air pressure gauge to see what air pressure the tires are currently at. Open and close the valve as needed until the desired air pressure is reached.
• Step 5: Leave Air System connected to all 4 tires for approximately 10-15 seconds with the valve in the closed position- this allows for all 4 tires to equalize their pressure.

Inflation:

• Step 1: Un-pack hoses. There are two long hose sections, one for each side of the vehicle. There is a manifold equipped with two quick-disconnect couplers for the two long hose sections. Orient the hoses so the manifold is accessible for your air source.
• Step 2: Connect the hose to the manifold via the quick-disconnect couplers (if needed). Make sure the air-valve (black handle) is parallel to the ground (this closes the valve).
• Step 3: Connect long hose sections to the vehicle tire valve-stems using the quick disconnect tire chucks. Make sure there’s no kinks in the hose line.
• Step 4: Connect coupler on manifold to air source. Note: if you are using a SmittyBuilt/Maxi-Trac/Lightning Bolt or Viair compressor, you will need the optional Thor’s Lightning Air System coupler. Once coupler is connected to air source, open the air-valve by turning the black handle to perpendicular to the ground. Failure to open the air-valve may cause the air source to fail due to back pressure.
• Step 5: Turn on the air source. Turn off the air source and check the digital air pressure gauge to see what air pressure the tires are currently at. Turn on and off the air source as needed until the desired air pressure is reached.
• Step 6: Leave Air System connected to all 4 tires for approximately 10-15 seconds with the valve in the closed position- this allows for all 4 tires to equalize their pressure.

NOTE: If utilizing a compressed CO2 air source (Power Tank), it is recommended not to exceed 200 p.s.i. in pressure on the regulator to prevent leakage unless a 250 p.s.i. High Pressure gauge upgrade was purchased.

Thor's Lightning Hammer Manifold Instructional Video

If the digital gauge appears to be reading high or low, recalibrate the gauge by removing and re-installing the AAA batteries inside of the gauge. If that doesn’t work, the gauge can be recalibrated using the following procedure:

1. When the pressure gauge is in the state of no air pressure, remove the battery and then re-install the battery.

2. Press and hold both of the two buttons (ON and UNITS) at the same time for about 5 seconds until the display shows "-80".

3. When -80 appears, inflate the pressure gauge to 80psi: do not add air pressure slowly, it needs to be added to 80PSI quickly.

4. If the display show "pass", the pressure gauge is recalibrated successfully.

5. Then remove and re-install batteries in pressure gauge, which will be ready for use.

Thor's Lightning TotalControl Hammer Manifold (TCHAM001) Instructions:

To Inflate:

1. Connect the controller to an air source (e.g., air compressor, air tank).
2. Connect the controller to the tires using the air hose (either a single tire or all four tires).
3. Press the power button to turn it on, and set the desired PSI by pressing the “-” or “+” buttons.
4. Turn on the manual valve and air source to start inflation. The process will pause 2–4 times for pressure calibration.
5. When the desired pressure is reached, the controller will close the internal electronic valve and beep.
6. Turn off the air source.
7. Disconnect the hoses from the tires.
8. Disconnect the air source and turn off the controller.
   Note: The electronic valve will remain closed for 120 seconds, during which it will beep. Disconnect the hoses and air source within this time.

To Deflate:

1. Connect the controller to the tires using the air hose (without connecting an air source).
2. Press the power button to turn it on, and set the desired PSI by pressing the “-” or “+” buttons.
3. Turn on the manual valve, and the controller will automatically start deflation. It will pause a few times for pressure calibration.
4. When the desired pressure is reached, the controller will close the internal electronic valve and beep.
5. Close the manual valve and disconnect the hoses from the tires.
   Note: The electronic valve will remain closed for 120 seconds, during which it will beep. Disconnect the hoses within this time.

Tip: Further Deflation:

To deflate further, with the hoses connected and the manual valve open, press “-” to lower the PSI. The controller will automatically continue deflation until the new pressure is reached.

Re-calibration procedure:

1. Ensure valve is in the open position.
2. Long press "-" and "+” buttons simultaneously, until software version is displayed
3. Release and short press "+" button again

Local atmosphere pressure will be recorded as 0, and unit will be re-calibrated to local conditions.

Tip: Inflating higher pressure for rear tires than front:

1. Connect all four tire hoses, and set the PSI for the front tires.
2. Inflate all four tires to the PSI set for the front tires.
3. Once the front tire pressure is reached, disconnect the front tires and press “+” to adjust the PSI for the rear tires. The controller will resume inflation to the new PSI for the rear tires.

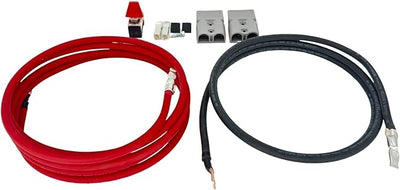

Thor's Lightning Quick Disconnect Kit (QDK001) Instructions:

Step 1: Disconnect positive battery terminal from vehicle battery.

Step 2: Cut alligator clips off of Thor’s Lightning Bolt True Dual Compressor wires (take note of which wire is positive and negative with use of tape).

Step 3: Feed red (positive) wire and black (negative) wire from Hardwiring Kit to vehicle battery or attachment to body (rear cargo area floor, battery terminals, etc.). DO NOT ATTACH WIRES TO BATTERY.

Step 4: Strip insulation of red (positive) wire approximately 1/2” using wire strippers. Strip positive wire of compressor (marked with tape) approximately 1/2”.

Step 5: Twist uncovered wire into a strand on both red (positive) wire and the air compressor wire. Place black heat shrink on both wires near end. Crimp on pole-connector terminal to both ends of wire. Use heat shrink as necessary to ensure protection from the elements.

Step 6: Connect power pole wire connectors using “+” (positive) side to pole-connector terminals on both the compressor and the wiring kit positive wires. Repeat steps 4-6 for negative wires from wiring kit and compressor.

Step 7: Cut red (positive) wire in engine bay near fuse box with wire cutters. Strip approximately 1/2” of insulation from both ends of red (positive) wire using wire strippers. Twist exposed wire into a strand. Unscrew plastic end caps of provided 100 Amp Fuse Receptacle Place and slide them over ends of wire onto insulation. Place wire in provided 100 Amp Fuse Receptacle and screw down terminals tightly onto exposed wire. Screw plastic end caps back onto fuse block. Use heat shrink if necessary before placing wire into fuse holder.

Step 8: Strip approximately 1/2” from end of red (positive) wire near battery terminal. Place black heat shrink over end of wire. Twist exposed wire into strand. Place wire into provided silver wire terminal. Crimp wire into terminal firmly using wire crimpers. Place heat shrink over terminal connection and shrink it into place to protect against the elements. Repeat for black (negative) wire.

Step 9: Determine where to best place fuse holder in engine bay (side of fusebox) and screw fuse holder into place with small screws.

Step 10: Carefully place terminal onto positive battery terminal and bolt it onto terminal.

Step 11: Turn vehicle on and test the Thor’s Lightning Bolt True Dual Compressor by using power switch on top of compressor.

Step 12: Show all your friends how fast you can air up!

Thor's Lightning Refuge Modular Bed Rack Installation Instructional Video
